PPGHO Mine No. 6: Concept design for the Shaft 13K main fan and air-heating plant

Accepted concept design for mine ventilation at Shaft 13K: main fan selection against the ventilation network characteristic, duty and standby fans, winter air heating, airflow reversal, and plant controls.

Client: VNIPIpromtekhnologii JSC
Facility owner: PPGHO PJSC
Location: Zabaykalsky Krai, Russia
Stage presented: Concept design: principal engineering design solutions
Year: 2026
Result: Concept design completed and accepted by the client

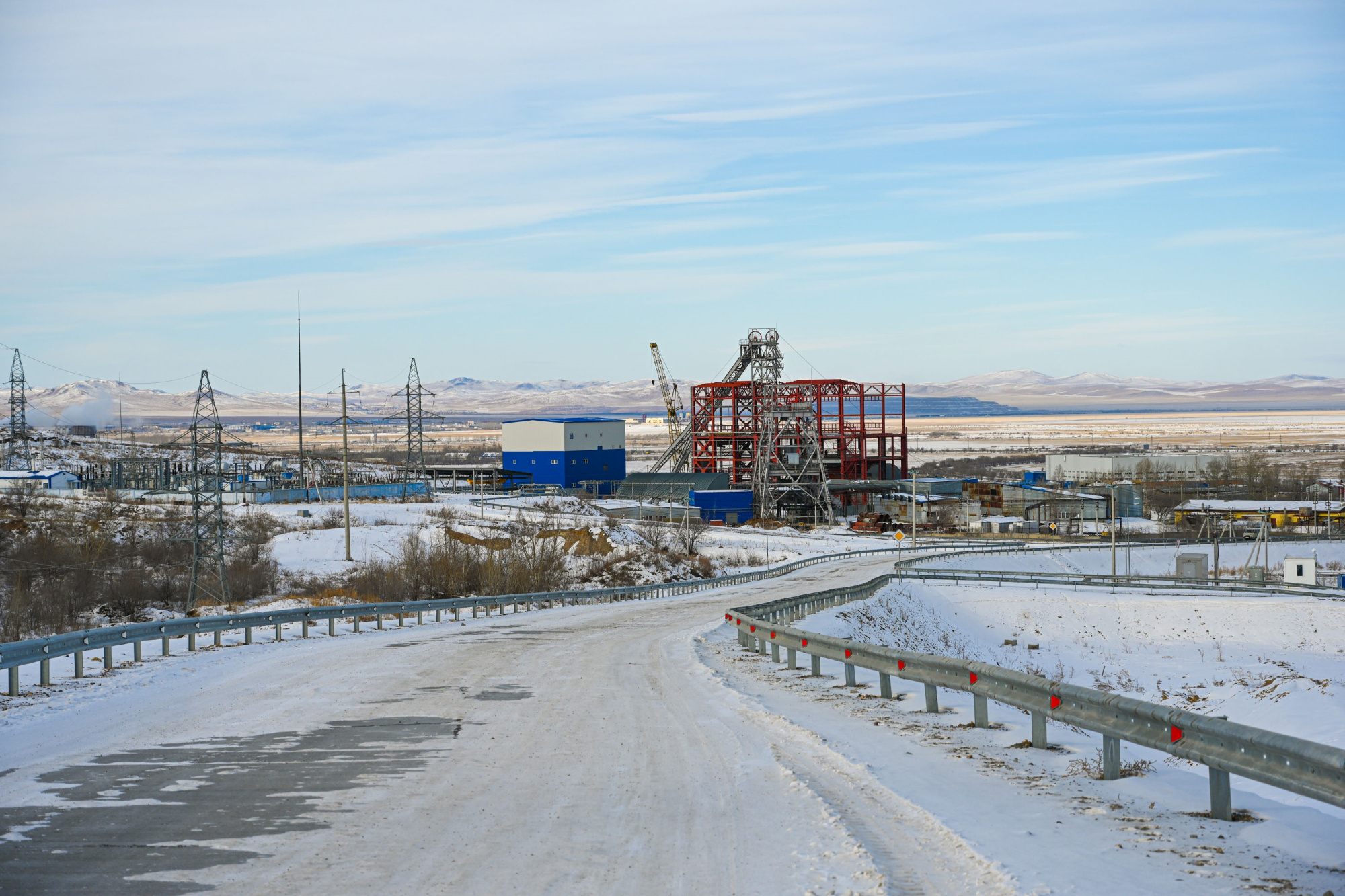

PPGHO Mine No. 6 surface site with a shaft headframe and pithead buildings against the hills of Zabaykalsky Krai — Surface site of PPGHO Mine No. 6, Zabaykalsky Krai, Russia. PJSC PPGHO named after E. P. Slavsky / Atom Media. Source.

The engineering task

Develop the principal engineering design solutions for the Shaft 13K ventilation complex serving PPGHO Mine No. 6 for its initial operating configuration. The scope covered the main fan plant, mine air-heating plant, and ventilation duct.

Our work

Refined the aerodynamic system characteristic to include the resistance of the air-heating plant and ventilation duct, and established the main fan selection duty points and reserve capacity.
Compared equipment and selected a main fan arrangement with duty and standby axial fans, variable-frequency drives, changeover dampers, and airflow reversal.
Selected water-heated heat exchangers with standby capacity, developed the heating circuit, and arranged the equipment.
Developed architectural and structural solutions for the air-heating building, main fan canopy, and ventilation duct.
Defined the principal power supply, automated control, communications, and fire protection solutions, together with equipment procurement requirements.

Completed result

The client accepted the completed concept design. It establishes the equipment, ventilation operating modes, and surface plant engineering solutions for the subsequent design documentation stage.

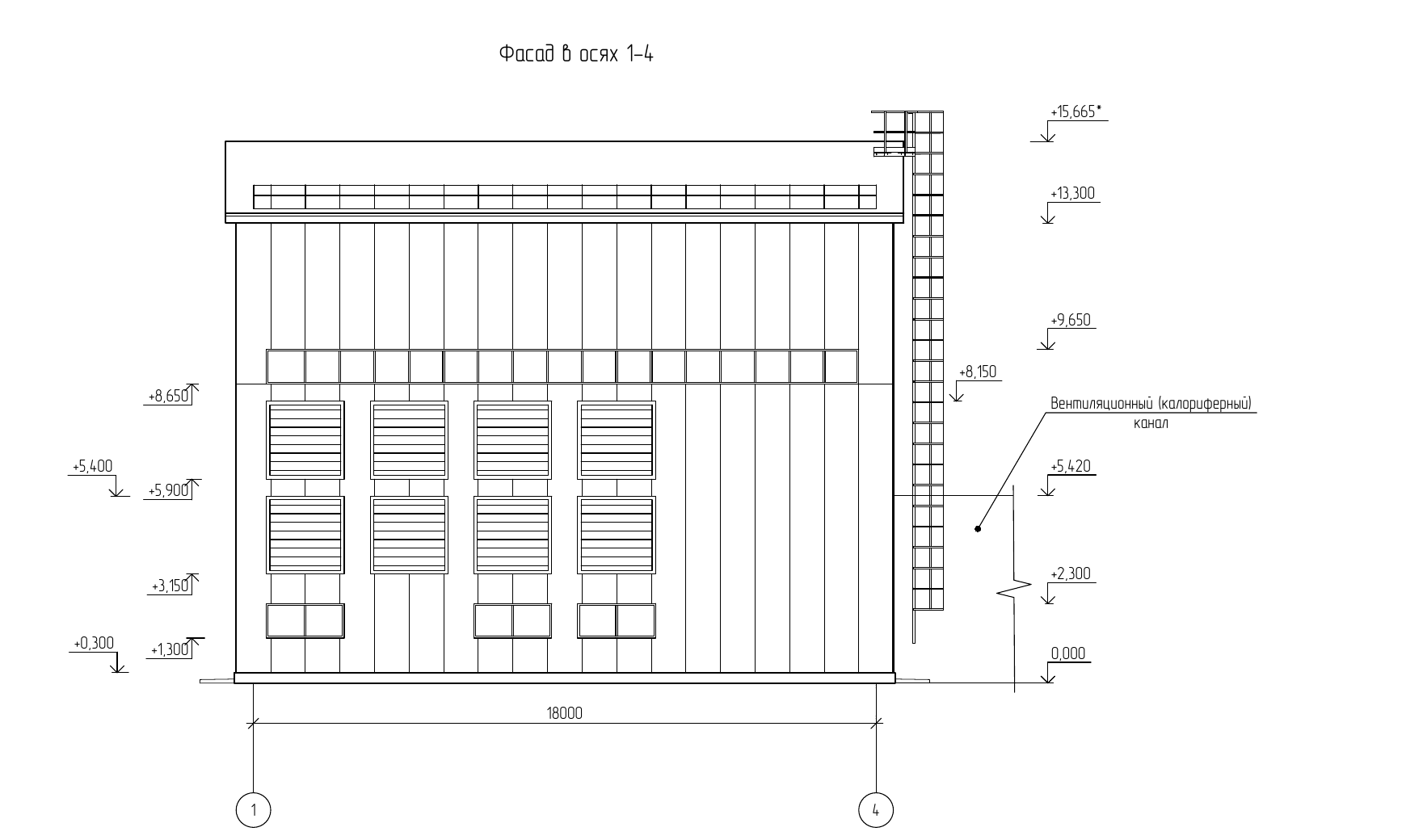

GPITS drawing of the Shaft 13K air-heating plant building elevation at PPGHO Mine No. 6 — Shaft 13K air-heating plant building elevation. Extract from the concept design developed by GPITS Engineering.

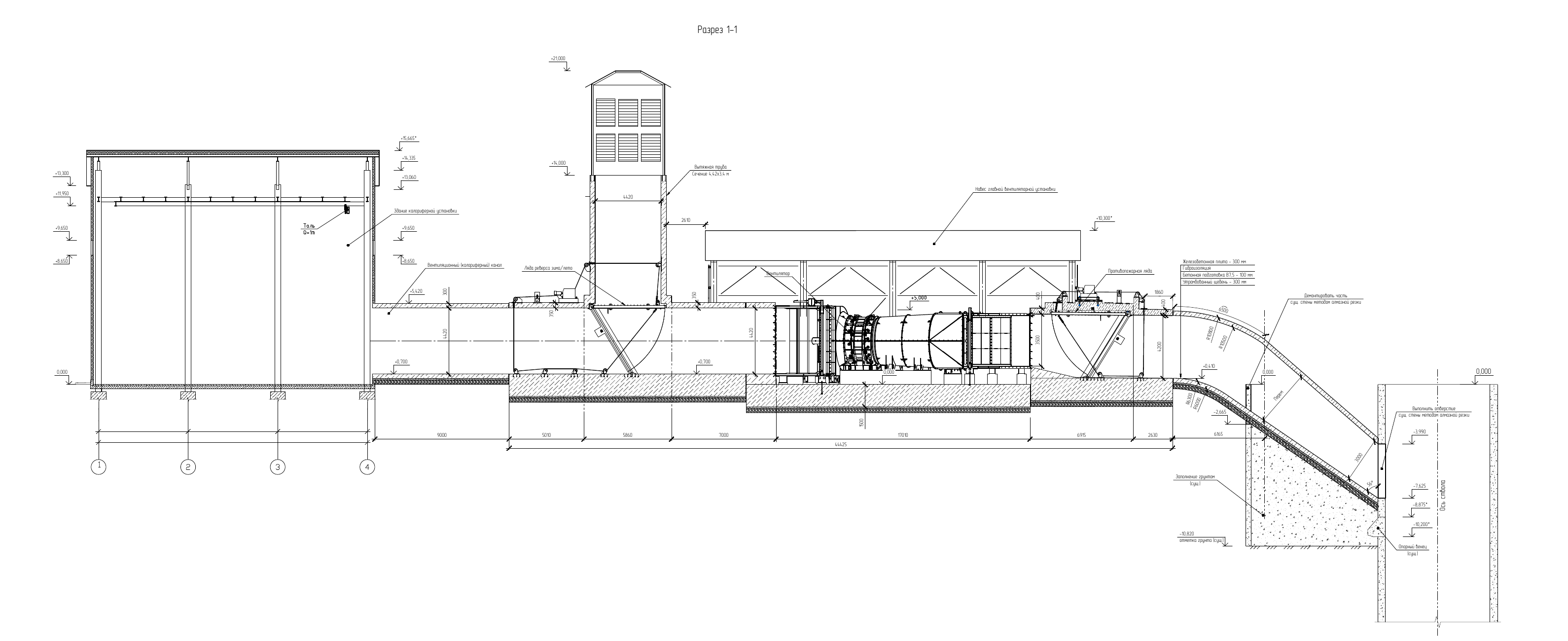

Section through the Shaft 13K main fan and air-heating plant complex and its ventilation duct — Section through the Shaft 13K main fan and air-heating plant complex and ventilation duct. Extract from the GPITS Engineering concept design.

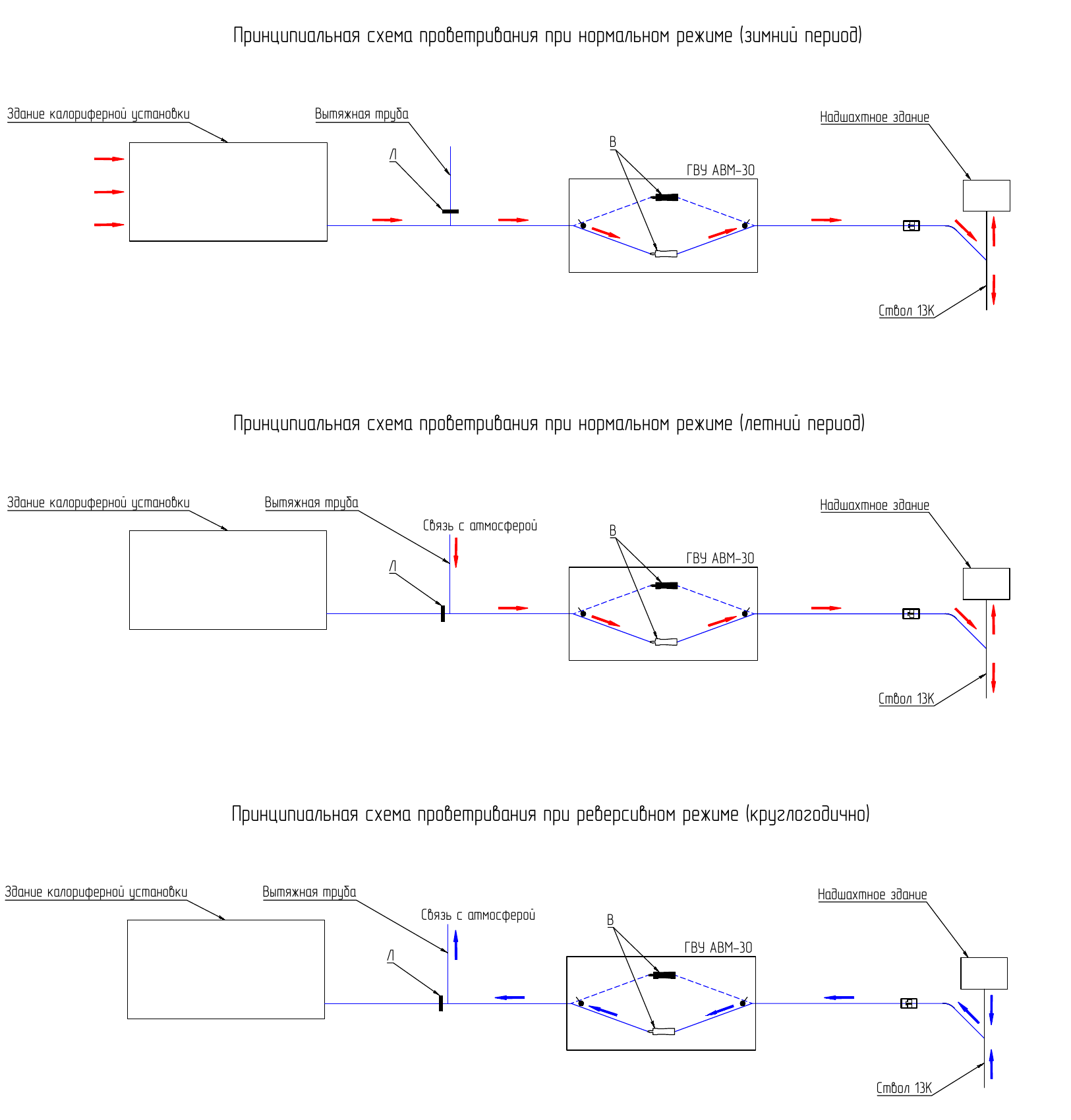

Shaft 13K mine ventilation diagram showing winter, summer, and reverse-airflow operating modes — Winter, summer, and reverse-airflow ventilation modes at Shaft 13K. Red arrows indicate fresh air; blue arrows indicate outgoing air in reverse operation. Extract from the GPITS Engineering concept design, 2026.
